Description:

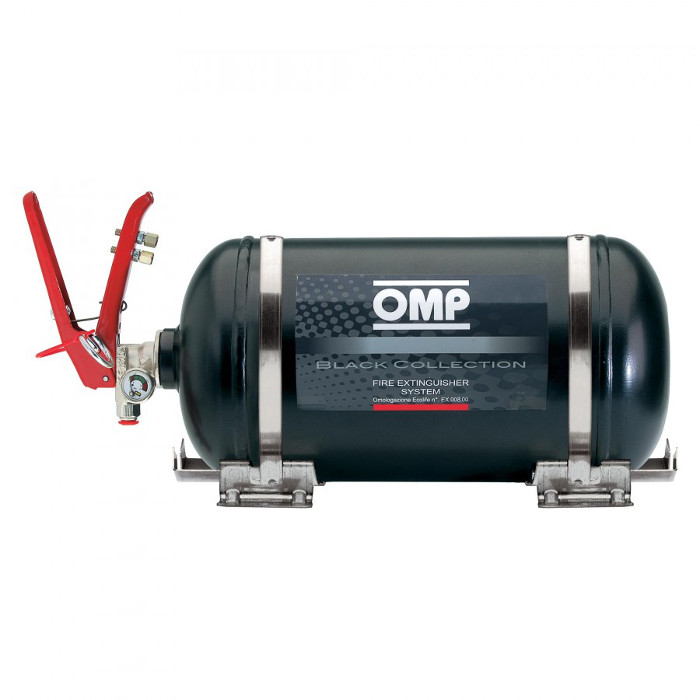

An in-car fire extinguisher system designed to provide effective fire suppression in critical situation and give the occupants time to exit the race car. Supplied tube and nozzles are designed to disperse the extinguishing agent evenly, ensuring comprehensive coverage of the affected area and to maximise the efficiency of the system.

TOTAL WEIGHT
8,1 Kg

• Complies with FIA technical list 16 for use in Motorsport
• Recommended for Saloon Cars
• Material: Steel
• HOMOLOGATION  –  FIA 2000

ON-BOARD EXTINGUISHER SYSTEM COMPONENTS:

• 2 x 4 m lengths Aluminium tubing
• 2 x Stickers
• 2 x Pull Cables
• 5 x Nozzles
• 3 x “T” connections diameter 8 mm
• 2 x 90°connections diameter 8 mm
• 1 x 3-way connections diameter 6 mm
• 2 x anti torpedo mounting tabs

NOTE: EXPRESS SHIPPING is NOT available for Fire Extinguishers.

Refer to MOTORSPORT AUSTRALIA MANUAL www.motorsport.org.au TECHNICAL APPENDIX Schedule H – Fire Extinguishers for specific requirements for your level of competition.

                      DIMENSIONS  –  A: 330 – B: 420 – C: 160

NOTE; with a plumbed in Fire System DO NOT add hose / tube length or additional nozzles than as supplied in the kit.

Adding hose / tube length or nozzles can compromise the effective functioning of the system.
